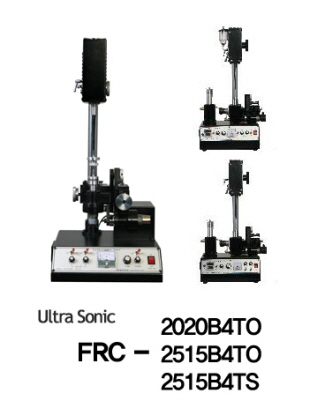

FRC-2515B4TO

Products_detail

초음파 다이스, 가공기, 연마기

초음파원리
사람의 귀로는 느낄수 없는 약 20~25Khz의 음파를 이용하여(초당20,000~25,000의 발진운동)가공 및 연마를 함.

초음파 가공기,연마기 특징

  • 1대의 기계로 가공기 및 연마기를 사용가능.
  • 발진진동자 세라믹4개 (일본완제품 수입사용)
  • 유압 시스템 FRC KOREA 독자개발.
  • 발진회로 FRC KOREA 독자개발.
SPECIFICATION
type Voltage(V) OUT
KHZ		 CURRENT
(W)		 TRANSDUCER COOLING
SYSTEM		 WEIGHT
KG		 OUTER
DIMENSIONS
LxWxH		 SUPPORTZ
FRC-2515B4TO 220V50/60HZ 25K 200W BLTx4 AIR 35 400x340x860 OIL
FRC-2515B4TS 220V50/60HZ 25K 200W BLTx4 AIR 35 400x340x860 SPRING
FRC-2020B4TO 220V50/60HZ 25K 200W BLTx4 AIR 40 400x400x900 OIL
FRC-2515TO

Products_detail

Ultrasonic dies machine

Fundamental of Ultrasonic
process&polish with ultrasonic wave(20~25KHz)
which cannot be recognized with human ear(20,000~25,000Hz vibration per sec.)

Character istics of Ultrasonic dies machine

  • Usable for processor & polisher with one machine
  • 4 Ceramic Oscillating vibrators(Made in japan)
  • Hydraulic system developed by FRC KOREA(1/10,000 accuracy)
  • Osciliator developed by FRC KOREA
  • Immediate A/S available with development
SPECIFICATION
type Voltage(V) OUT
KHZ		 CURRENT
(W)		 TRANSDUCER COOLING
SYSTEM		 WEIGHT
KG		 OUTER
DIMENSIONS
LxWxH		 SUPPORTZ
FRC-2515B4TO 220V50/60HZ 25K 200W BLTx4 AIR 35 400x340x860 OIL
FRC-2515B4TS 220V50/60HZ 25K 200W BLTx4 AIR 35 400x340x860 SPRING
FRC-2020B4TO 220V50/60HZ 25K 200W BLTx4 AIR 40 400x400x900 OIL
