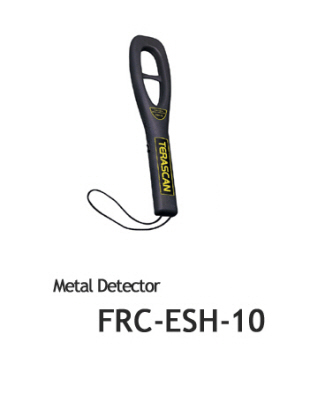

FRC-ESH-10

Products_detail

휴대용 금속탐지기

특징

  • 경보음과 진동기능이 있고 특히 진동기능은 고사장과 같이 정숙을 요하는 장소에 적합 합니다.
  • 감도가 우수하여 철,비철 금속으로 이루어진 작은(5mm)물체를 탐지합니다.
  • 무게가 가볍고(220g),손잡이가 얇아 장시간 사용해도 무리가 없으며, 특히 여성이 사용하기에 편리합니다.
  • 화재시 불에 잘 타지 않는 난연성 재질을 사용 하였습니다.
  • 사용시 건전지의 교체 주기를 알려 주는 저 전압 경고등과 power on/off램프가있어 한눈에 장비의 상태를 알 수 있습니다.
  • 충전 건전지 사용시 건전지의 충전을 위하여 충전 기능이있습니다.
  • 검색하는 부위를 볼 수 있도록 탐지부를 개방형으로 설계하여 사용자의 육안으로 물체 파악이 용이합니다.

성능

  • 탐지부 앞,뒤면 모두 탐지기 가능 합니다.
  • 금속 물체 탐지시 경보음 기능과 진동 기능을 선택 할 수 있습니다.
  • 수능 고사시 부정 행위의 원인이 되는 휴대폰 검색에 적합 합니다.
  • 주로 흉기나, 무기가 될 수 있는 금속 물체를 검색 하는 용도에 적합 합니다.

용도

  • 휴대한 금속을 검색하는 휴대용 금속탐지기로 공항,항만,귀금속상점,수능고사장,보안을 요구하는 특정 지역에 적합 합니다.

제원

  • 모델번호:ESH-10 | 크 기 : 375mm x 7mm x 26mm
  • 무 게 : 220g|사용전압 : 9V(ㅜ반 건전지,알카라인 건전지,Ni-Cd 충전건전지)
10M

Products_detail

HAND METAL DETECTOR

TO Operate the detector

  • Install the Batteries
    a. Use a 9Volt LKALINE or Ni-Cd battery
    b. Install battery with correct polarity(align "+" on detector housing with "+" on battery)
    c. The battery cover opens and closes with a screwdriver
  • Set the Sound/Vibrate switch to "sound" and "Vibrate"
    a. Forward position (S) : Sound ON
    b. Center position (O) : Power OFF
    c. Back position (V) : Vibrate ON
  • Sweep the Detector over the target area. Detector must be IN MOTION to detect metal
  • Read this manual for proper training in the detection metal objects

Batteries

  • Use 9-Volt ALKAINE or Ni-Cd battery
  • Low Battery Alert
  • The RED LED indicator ligh will illuminate and remain illuminated when the betteries are discharged to the point at which the detector has lost 10% of its metal detecting range.
  • The sound alert will also lengthen(the tone will sound for a longer period of time)upon detection of metal objects, when the batteries become discharged to the point at which the detector has lost 10% of its metal detecting range
  • The detector will continue to operate, at a lower sensitivity when the Low Battery Indicators are activated. Replace batteries as soon as possible after these indicators activate.

LED Indicators

  • The RED light indicates LOW BETTERY -The YELLOW light indicates the detection of a metal object
  • The GREEN light indicates that the detector in ON
